920LS/922LS LOG SPLITTER

*MSRP  $6,676.00

WHY BARRETO?

Built specifically for the demands of the rental market, the Barreto Log Splitter is engineered for heavy use and long-term performance. Its 790-pound frame, high-carbon wear-alloy wedge, and high-wear nylon knife-plate pads are built to withstand demanding workloads. A torsion axle suspension improves towing and tracking, while the lockable log cradle folds out of the way for vertical splitting. Rubber bump stops and spring-loaded lock bars provide added protection and stability during operation and transport.

Safety and ease of use are built into the design. The mandatory two-handed control system, cushion-mounted log cradle, and spring-loaded cleaning wedge help protect the operator during splitting. Rubber-mounted engine components help reduce vibration, while available fenders and tail lights allow the splitter to meet individual state towing requirements.

A powder-coated finish, protected oil filter, hydraulic intake screen, and industrial-grade frame help reduce maintenance and extend service life. The large hydraulic oil reservoir helps manage operating temperatures and protect hydraulic components during extended use.

Built to withstand demanding rental environments, the Barreto Log Splitter delivers the durability, safety, and low-maintenance performance needed to keep working season after season.

FEATURES

  • Rugged, heavy-duty design
  • Two handed control provides operational safety

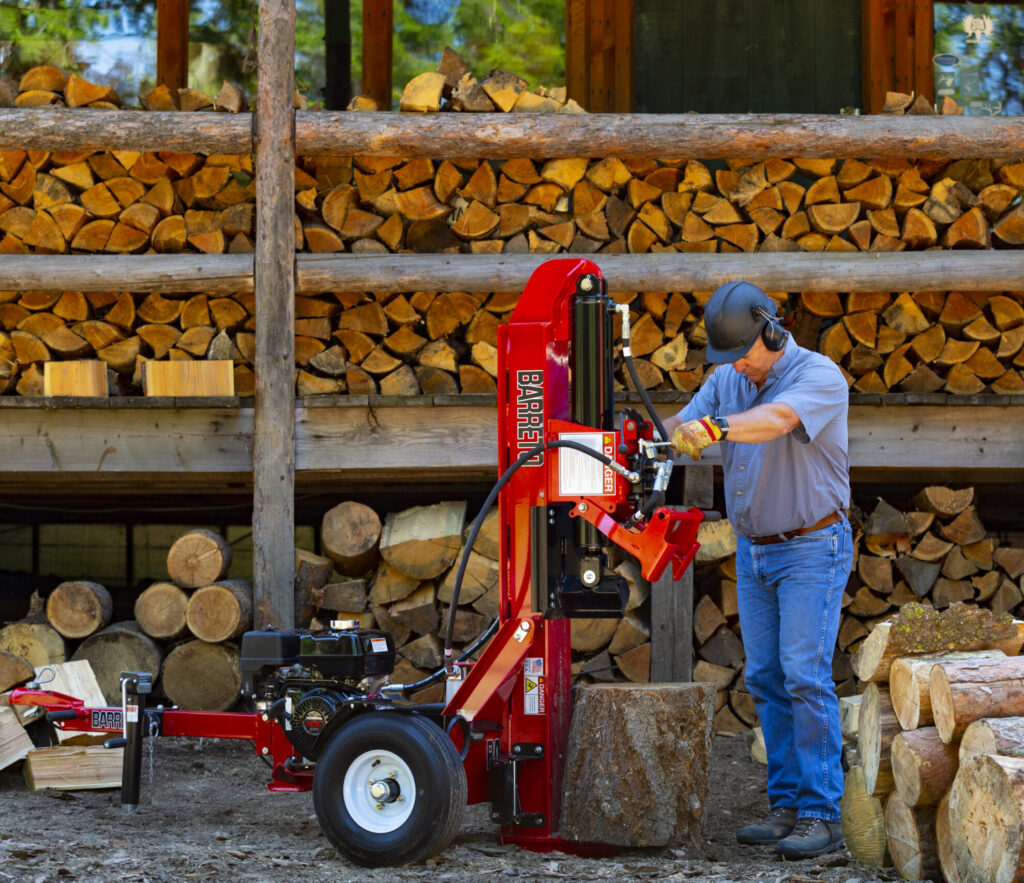

  • Log cradle locks out of the way when splitting in the vertical position
  • Spring loaded wedge cleaner keeps hands clear of operation area
  • Torsion axle suspension

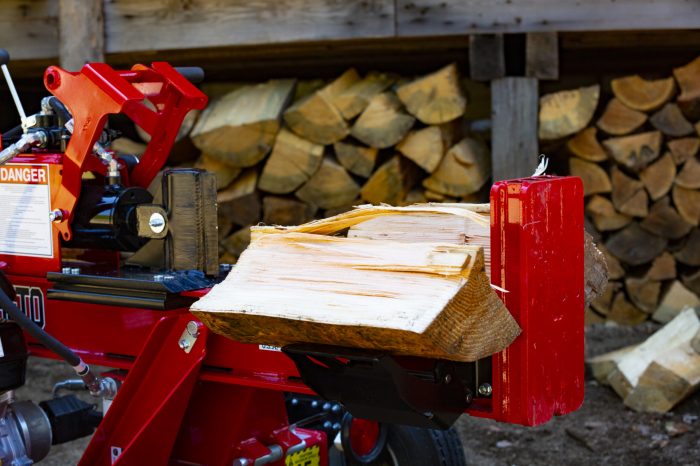

20200817_920LS-Action-524

SPECIFICATIONS

ENGINE:
Briggs Vanguard 10hp Model 19L237

DETAILS:
Beam: 6″ x 25lb. Wide Flange Beam
Wedge: High Carbon Wear-Alloy
Cylinder: 24″ Stroke, 2″ Rod
Log Opening: 25″
Hydraulic Tank: 7 gallon system capacity
System Pressure: 2,750 psi
Control Valve: Detent, Auto Return
Length: 102″
Width: 53″
Height: 48″
Weight: 790 lbs.
Tire Size: 18 x 5.7 x 8
Doly Coupler: 2″ Diameter Ball

SEE IT IN ACTION
